EasyFit British Larch/Douglas Fir Softwood Wall Mounted Pergola Kit - FREE DELIVERY
MODEL EFWMPK
EasyFit British Larch/Douglas Fir Softwood Wall Mounted Pergola Kits, easy to assemble and comprising of high-quality components.
FREE DELIVERY TO MAINLAND UK*
*except the Scottish Highlands (including IV and KW postcodes) and British Isles were additional charges may apply.
These kits are a must-have purchase should you require a simple and effective solution for outdoor entertaining or as a support for the growth of climbing plants. These particular kits are our wall-mounted variants which only contain two upright posts instead of four and each rafter is cut short on one side to allow a bearer to be fixed flush against a boundary wall.
The components of your kit will be constructed from untreated British Larch/Douglas Fir that has been pre-cut and machined, eliminating the need for annual retreatment and meaning that you will only require basic tools to assemble using the supplied instructions.
These purposely designed, simple to fit, slot together pergolas really are a dream to construct. Just slot them together in their pre-cut slots to build the structure then for additional strength, if required, pop a small screw (supplied) at each joint.
Our Standard Wall Mounted Pergola Kits are available in various dimensions and contain the following dependant on the size required:
3600mm x 2400mm
- 2 x Larch/Douglas Fir Softwood Notched Posts - (Selected Size from Dropdown)
- 2 x Larch/Douglas Fir Softwood Rafter Bearers - 3600mm x 100mm x 50mm
- 6 x Larch/Douglas Fir Softwood Notched Rafter Rails - 2400mm x 100mm x 50mm
- Pack of Timber Titan Screws to fasten joists - 63mm

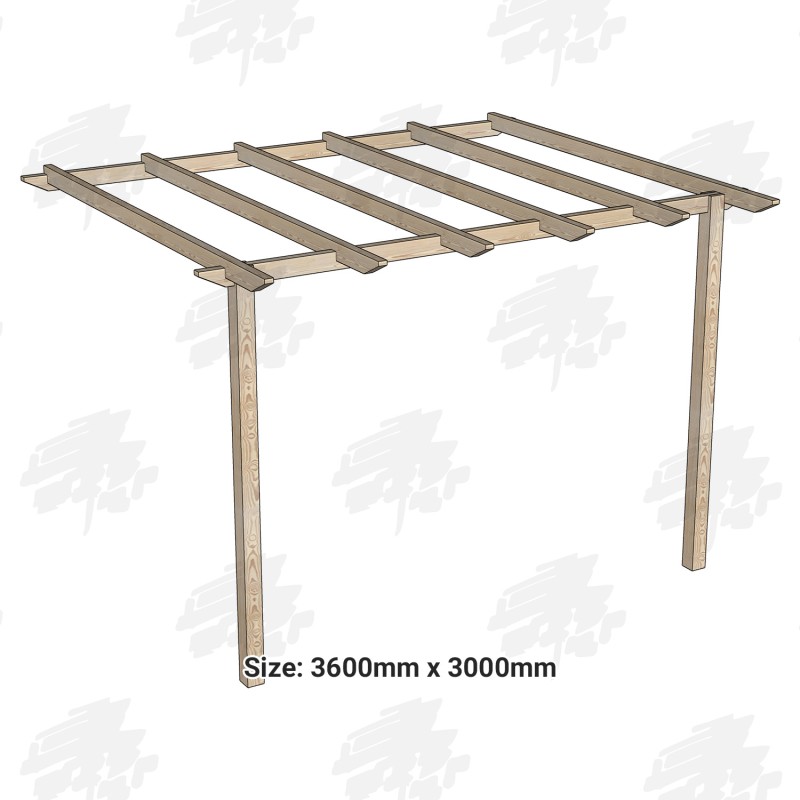

3600mm x 3000mm
- 2 x Larch/Douglas Fir Softwood Notched Posts - (Selected Size from Dropdown)
- 2 x Larch/Douglas Fir Softwood Rafter Bearers - 3600mm x 100mm x 50mm
- 6 x Larch/Douglas Fir Softwood Notched Rafter Rails - 3000mm x 100mm x 50mm
- Pack of Timber Titan Screws to fasten joists - 63mm
4200mm x 2400mm
- 2 x Larch/Douglas Fir Softwood Notched Posts - (Selected Size from Dropdown)
- 2 x Larch/Douglas Fir Softwood Rafter Bearers - 4200mm x 100mm x 50mm
- 8 x Larch/Douglas Fir Softwood Notched Rafter Rails - 2400mm x 100mm x 50mm
- Pack of Timber Titan Screws to fasten joists - 63mm
4200mm x 3000mm
- 2 x Larch/Douglas Fir Softwood Notched Posts - (Selected Size from Dropdown)
- 2 x Larch/Douglas Fir Softwood Rafter Bearers - 4200mm x 100mm x 50mm
- 8 x Larch/Douglas Fir Softwood Notched Rafter Rails - 3000mm x 100mm x 50mm
- Pack of Timber Titan Screws to fasten joists - 63mm
4800mm x 2400mm
- 2 x Larch/Douglas Fir Softwood Notched Posts - (Selected Size from Dropdown)
- 2 x Larch/Douglas Fir Softwood Rafter Bearers - 4800mm x 100mm x 50mm
- 8 x Larch/Douglas Fir Softwood Notched Rafter Rails - 2400mm x 100mm x 50mm
- Pack of Timber Titan Screws to fasten joists - 63mm
4800mm x 3000mm
- 2 x Larch/Douglas Fir Softwood Notched Posts - (Selected Size from Dropdown)
- 2 x Larch/Douglas Fir Softwood Rafter Bearers - 4800mm x 100mm x 50mm
- 8 x Larch/Douglas Fir Softwood Notched Rafter Rails - 3000mm x 100mm x 50mm
- Pack of Timber Titan Screws to fasten joists - 63mm
Each kit is supplied with either 2400mm Larch/Douglas Fir Softwood Notched Posts for soft ground fitting or hard standing, or 3000mm posts should you require bedding into concrete.
The sizes listed are the overall dimensions from the end of a rafter the opposite end, for the internal length dimension (between posts), you can take the overall length minus 400mm minus the width of the posts times by 2 i.e. (overall length) - (400mm) - (post size *2), and for the internal width dimensions (between wall and post), you can take the overall width minus 400mm minus width of the post i.e. (overall width) - (400mm) - (post size); for example a 3600mm x 2400mm kits with 150mm x 150mm posts, the internal dimensions will be 2900mm x 1850mm.
We also offer the option to pick an end style for your rafters/bearers. You can choose from one of the following to suit your own style: Square Edged, Chamfered, Rounded, Sleek, Crescent or Ornate - simply select the profile in the relevant dropdown.
Instructions for your selected pergola kit are available to download by clicking on the links below.
